200W Solar Panel with Brackets

This Solar Panel requires a regulator and is recommended to be installed by a qualified auto electrician.

(1200 x 880 x 30mm) SLV SOLAR PANEL //

• PMAX 200W
• Maximum Power Voltage (VMP) 18.5V
• Maximum Power Current (LMP) 10.8A
• Open-Circuit Voltage (VOC) 22.2V
• Short-Circuit Current (ISC) 11.6A
• Application Class A
• Sleek Black Anodised Aluminium Alloy Design

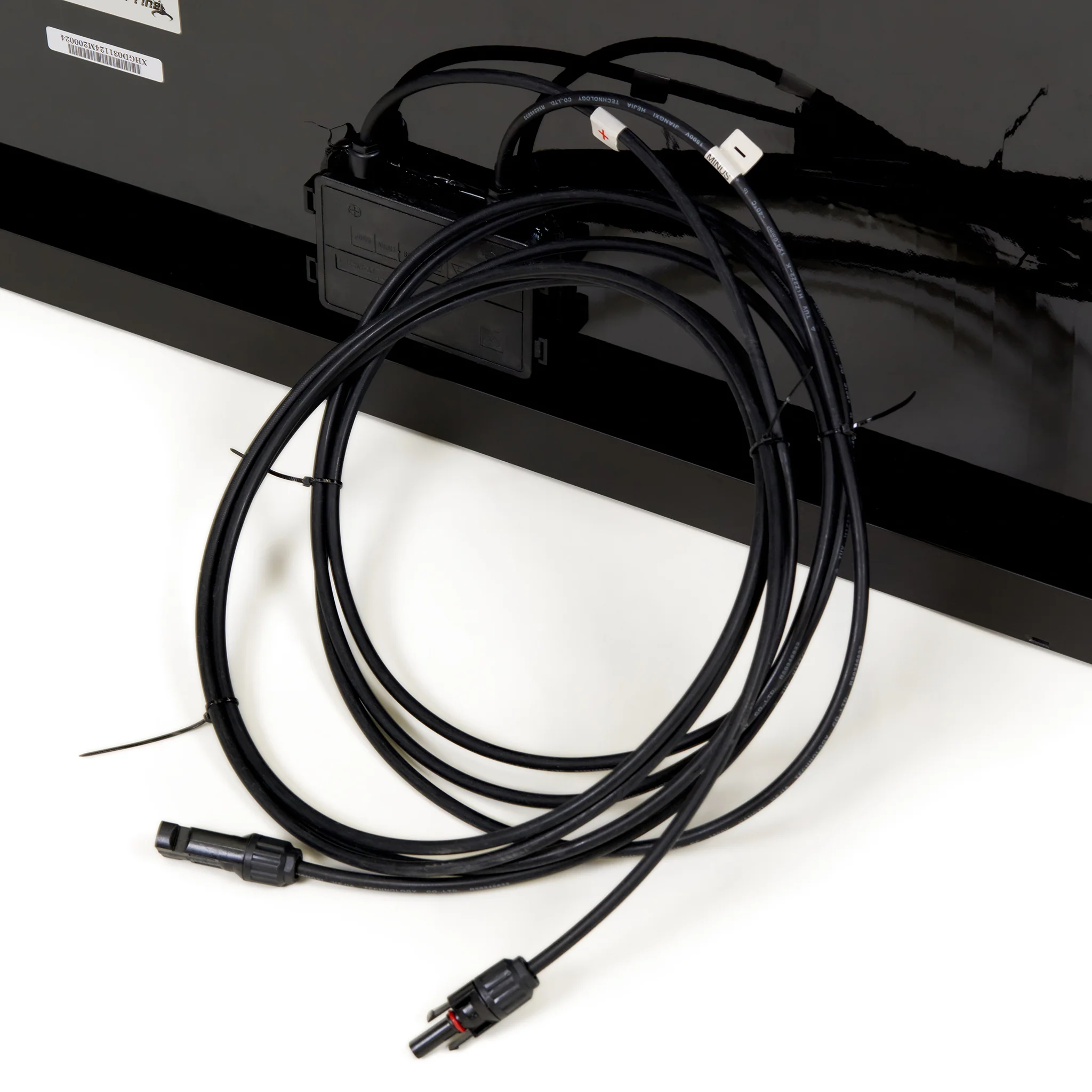

• 3m cables with MC4 compatible connectors
• Mono-crystalline Cells

• 3.2mm Tempered Glass
• IP65 Waterproof Junction Box
• Weight : 11kgs
• 1200mm x 880mm x 30mm

• Compatible with all 12 Volt systems, DCDC Chargers and Batteries

(1370 x 880 x 30mm) XLZ SOLAR PANEL //

• PMAX 200W
• Maximum Power Voltage (VMP) 20.7V
• Maximum Power Current (LMP) 10.8A
• Open-Circuit Voltage (VOC) 24.8V
• Short-Circuit Current (ISC) 11.6A
• Application Class A
• Sleek Black Anodised Aluminium Alloy Design
• 3m cables with MC4 compatible connectors
• Mono-crystalline Cells

• 3.2mm Tempered Glass
• IP65 Waterproof Junction Box
• Weight : 13.5kgs
• 1370mm x 880mm x 30mm

• Compatible with all 12 Volt systems, DCDC Chargers and Batteries

INCLUDED (with each panel) //

• 1 x 200W Black Solar Panel
• 4 x Corner Brackets & hardware to suit the Side Brackets supplied with the Bull Proof SLV/XLZ RTT

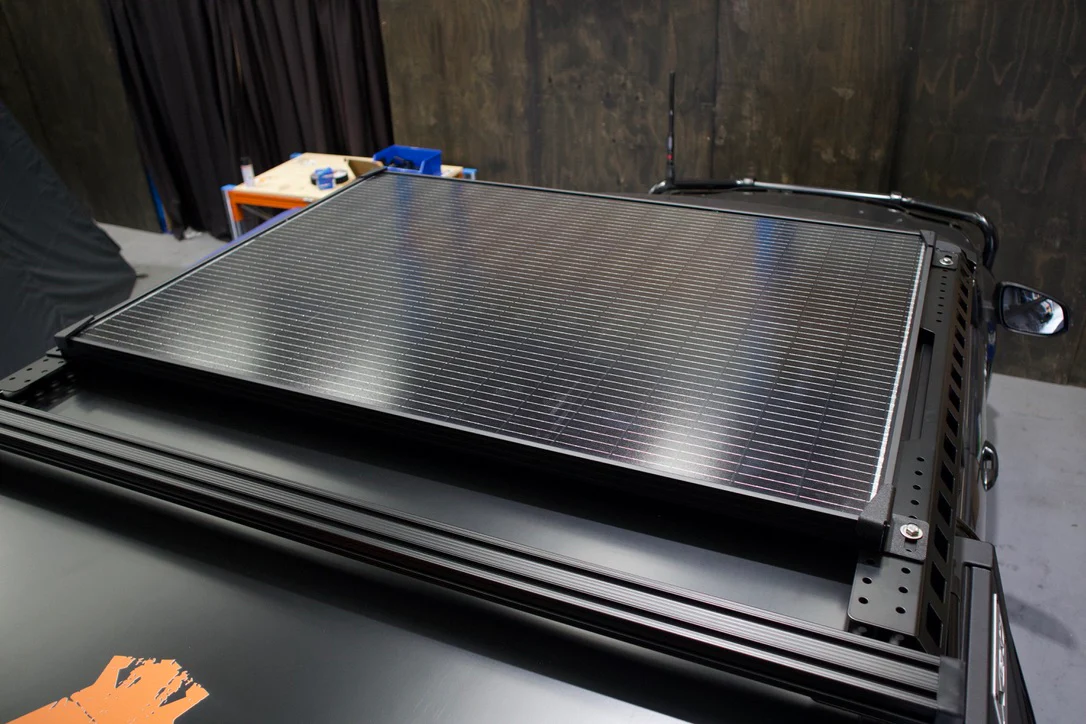

Note : If mounting to a Bull Proof SLV or XLZ Rooftop Tent, you will NOT be required to drill any holes. The corner brackets are designed to match perfectly with the pre-existing holes on the supplied side brackets inc. with your tent purchase.
